BS-M2S-C Adapter card

BS-M2S-C Adapter card

SATA to M.2-Socket 2-B + M-2242-SATA Adapter card
undefined
/

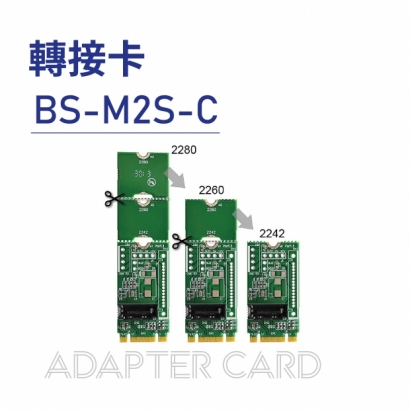

  • Adapter card 轉接卡-BS-M2S-C.jpg
DETAIL


M2S-C is SATA adapter from M.2 Socket 2. This module allows you connect any SATA device to M.2 slot through a standard SATA port.
M2S supports M.2 socket 2 with TYPE 2242-D2-B-M of SATA SSD. SATA interface supports standard SATA 7pin data signals.

M2S-C is the best solution to evaluate M.2 SATA SSD socket.



Specification
  • Standard SATA interface adapter from M.2 Socket 2 slot for SATA SSD
  • Compliant with PCIe M.2 Specification Rev 1.0
  • Body Size: TYPE 2242-D2-B-M
  • Module Key : B+M (Both Key B and Key M)
  • Interface : Standard SATA 7pin Connector
  • Compliant with Serial ATA Revision 3.1


OS Support
  • Transparent to the operating system and does not require any software drivers.


System Requirements
  • Type 2242 M.2 Socket 2 with Key B or M for SATA


Warning
  • This adapter is engineering test tools. NOT for home or office use.
  • Rev 1.0 Compliant. Specification may vary in newer revision.
  • The Products just only support M.2 SATA slot, Can’t support other SSD such as mSATA, Eee PC SSD, Apple MacBook air SSD Card.
  • Support SATA interface only. No other interface (such as PCIe or USB) is supported.
