Adapter cards

BS-M2MP1-A Adapter card

BS-M2MP1-A Adapter card

M.2 (NGFF) to mPCIe (PCIe+USB) Adapter card (Socket 1 , Key A)

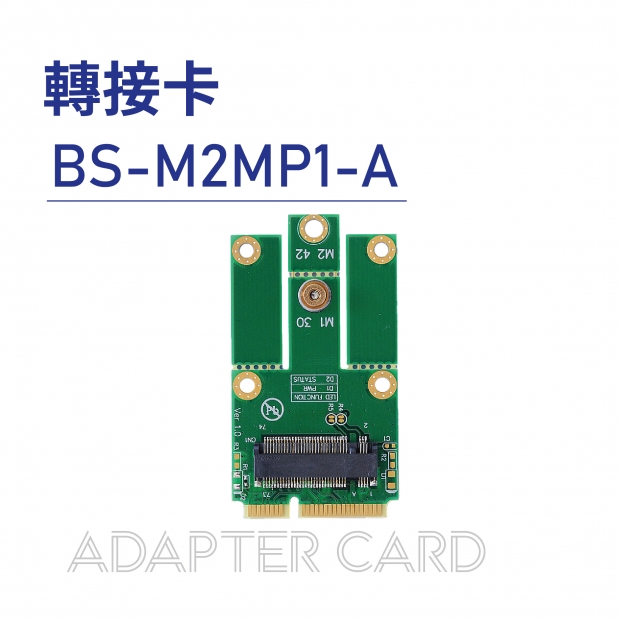

  • Adapter card 轉接卡-BS-M2MP1-A.jpg
DETAIL






Name : M2MP1-A
Summary : M.2 (NGFF) to mPCIe (PCIe+USB) adapter
Interface : mPCIe side: PCIe + USB
M.2 (NGFF) side : Key A Socket 1
Application : Suitable for intel 7260NGW with 802.11ac WiFi & Bluetooth 4.0



Specification
  • M.2 Specification Revision 0.9-3
  • PCI Express base Specification 1.1 (Up to 2.5Gpbs)
  • USB Specification Revision2.0
  • Support 3030/3042 M.2 Card dimension.
  • Support M.2 Socket 1 Module.
  • M2MP1-A Support M.2 Key A / A+E Card Type.
  • Support Full size and half size mPCIe slot

Function
  • Allows user to use M.2 Socket 1 Module to mPCIe Slot in the Desktop or Laptop.
  • Supports system bus interface: PCIe&USB2.0.
  • Supports USB interface of Mini-Cards such as 3G,CDMA, WWAN, HSPA, GPS, WiMAX, Bluetooth Mini Card to desktop PC.
  • Support PCIeMiniCard :IEEE WLAN802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac
  • No drivers needed for this M.2 to mini PCI-E Card Adapter

System Requirements
  • Mini PCI-E slot
  • Windows 2000, XP, Vista 32/64, Windows 7, Windows 8 or Linux
