Radiall 16 CHANNELS PRESSURE CONTACT CONNECTOR

  1. Radiall 16 CHANNELS PRESSURE CONTACT CONNECTOR

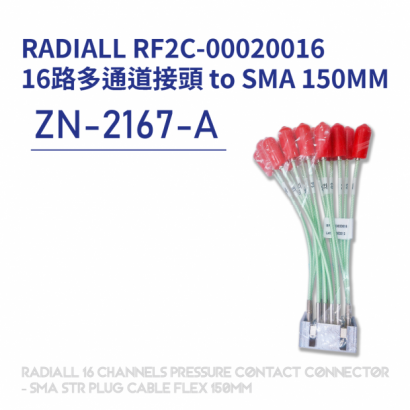

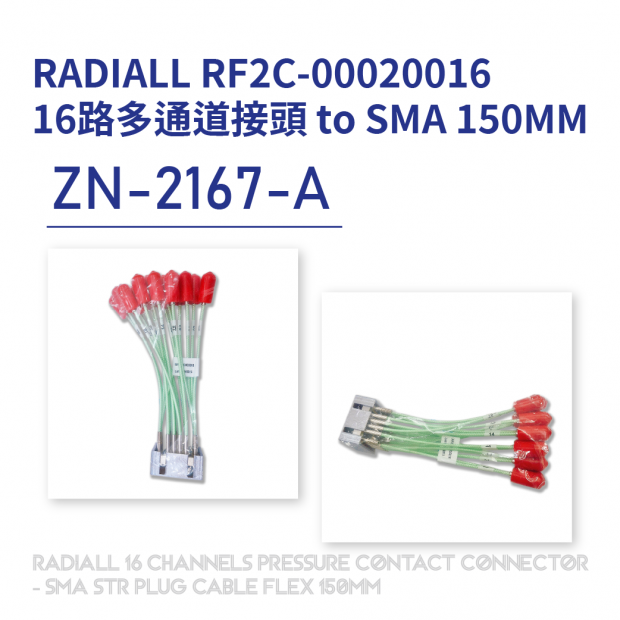

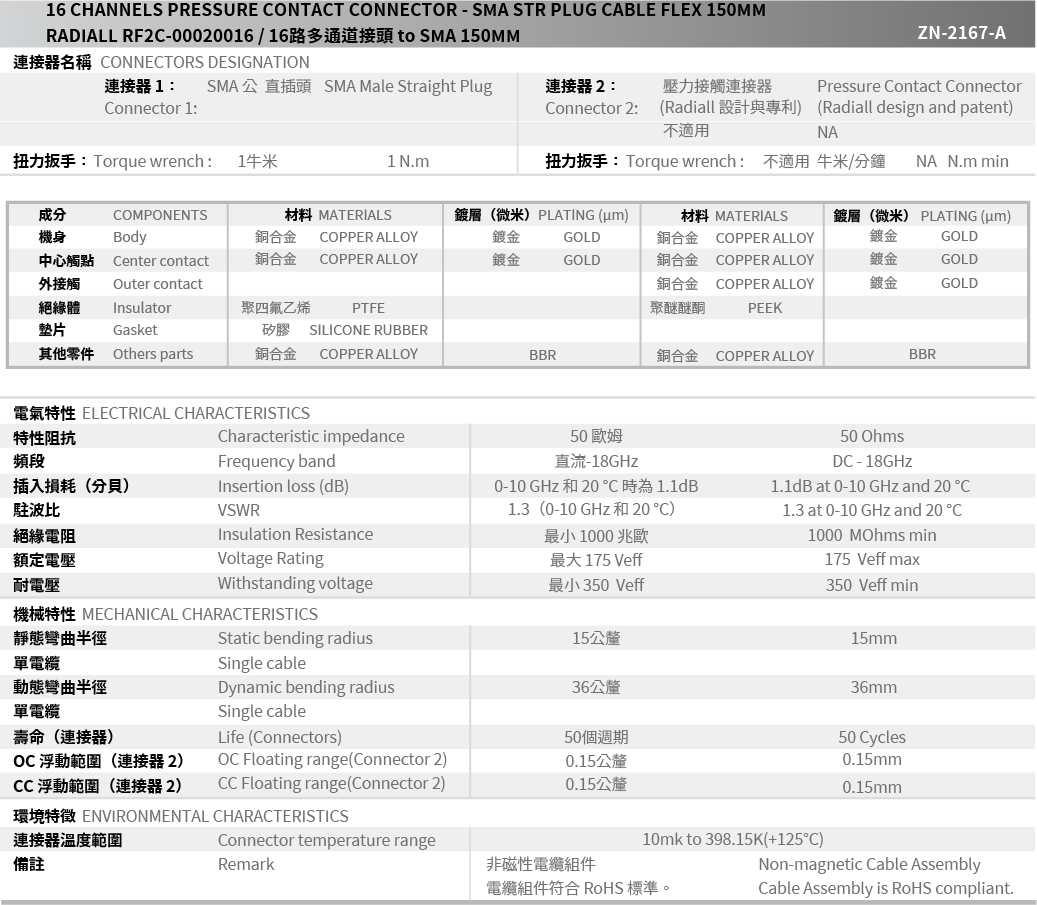

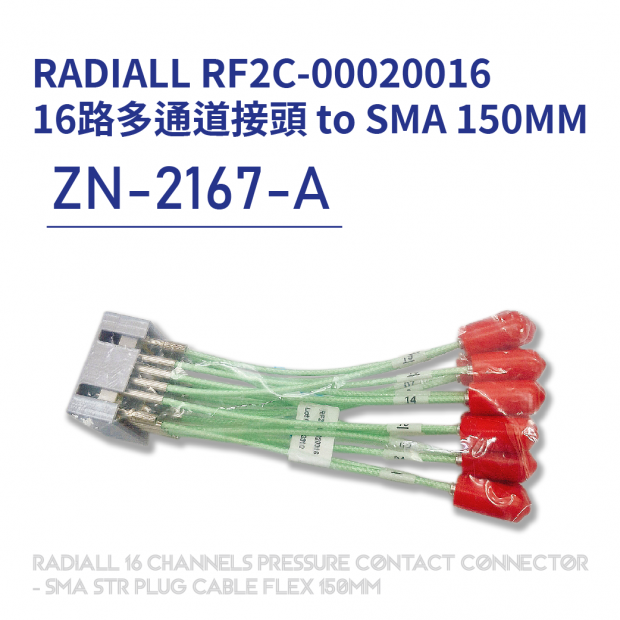

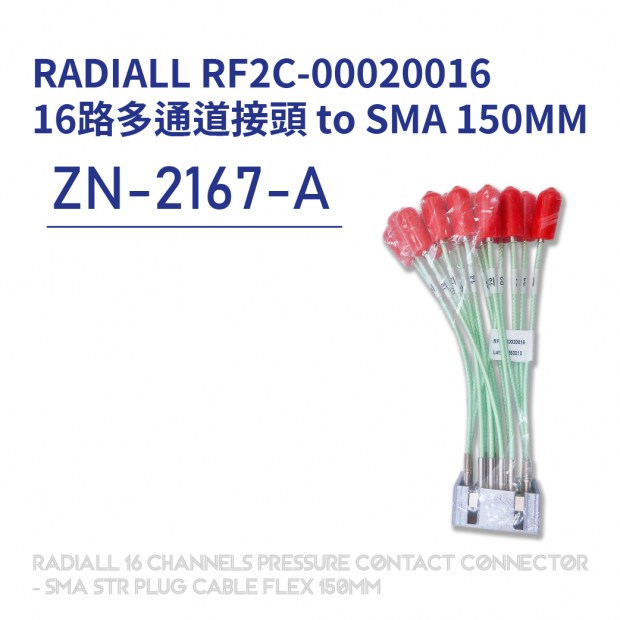

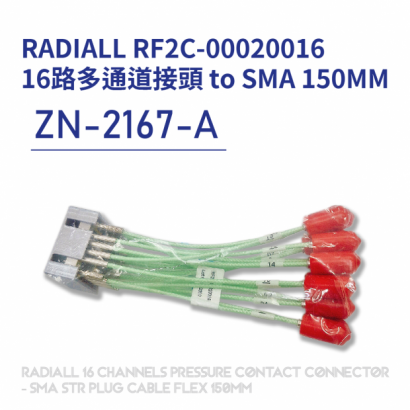

ZN-2167-A RADIALL RF2C-00020016 / 16 CHANNELS PRESSURE CONTACT CONNECTOR - SMA STR PLUG CABLE FLEX 150MM

ZN-2167-A RADIALL RF2C-00020016 / 16 CHANNELS PRESSURE CONTACT CONNECTOR - SMA STR PLUG CABLE FLEX 150MM

ZN-2167-A RADIALL RF2C-00020016
16 CHANNELS PRESSURE CONTACT CONNECTOR
- SMA STR PLUG CABLE FLEX 150MM
undefined
/
undefined
/
undefined
/
  • 03-16路多通道接頭 to SMA 150MM-京商型號ZN-2167-A-RADIALL RF2C-00020016-03.png
  • 03-16路多通道接頭 to SMA 150MM-京商型號ZN-2167-A-RADIALL RF2C-00020016-02.png
  • 03-16路多通道接頭 to SMA 150MM-京商型號ZN-2167-A-RADIALL RF2C-00020016-01.png
DETAIL

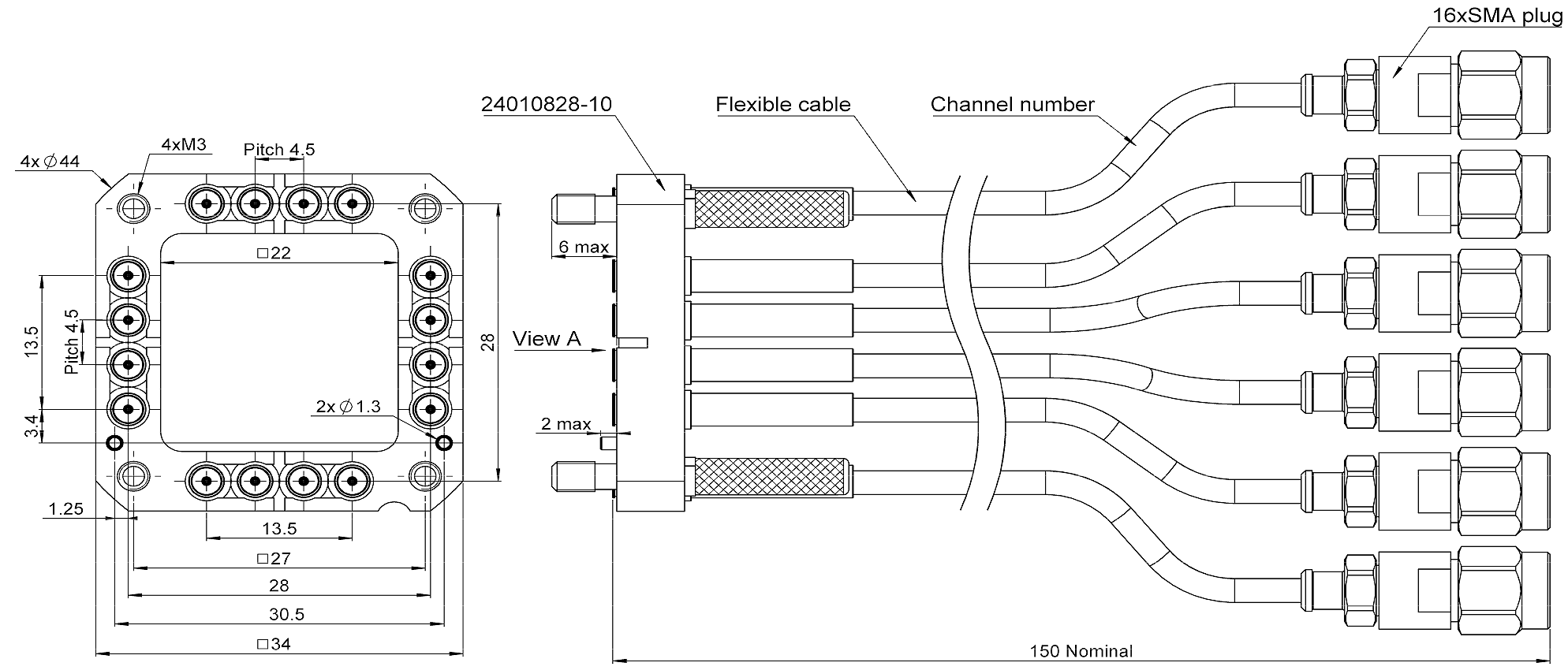

▍ Mechanical drawing
